HD58 master parts kit for sale

Tortillaworld™ is an authorized distributor of Plas-Ties who sells the complete line of HD-series twist-tying machines, materials, accessories & parts. This master parts kit hat has everything you need to repair your HD58PLUS twist-tying machine in your shop with little down time versus ordering only the parts you need. Smaller kits available.

Tie-matic HD58PLUS Master Parts Kit:

Part # K004058

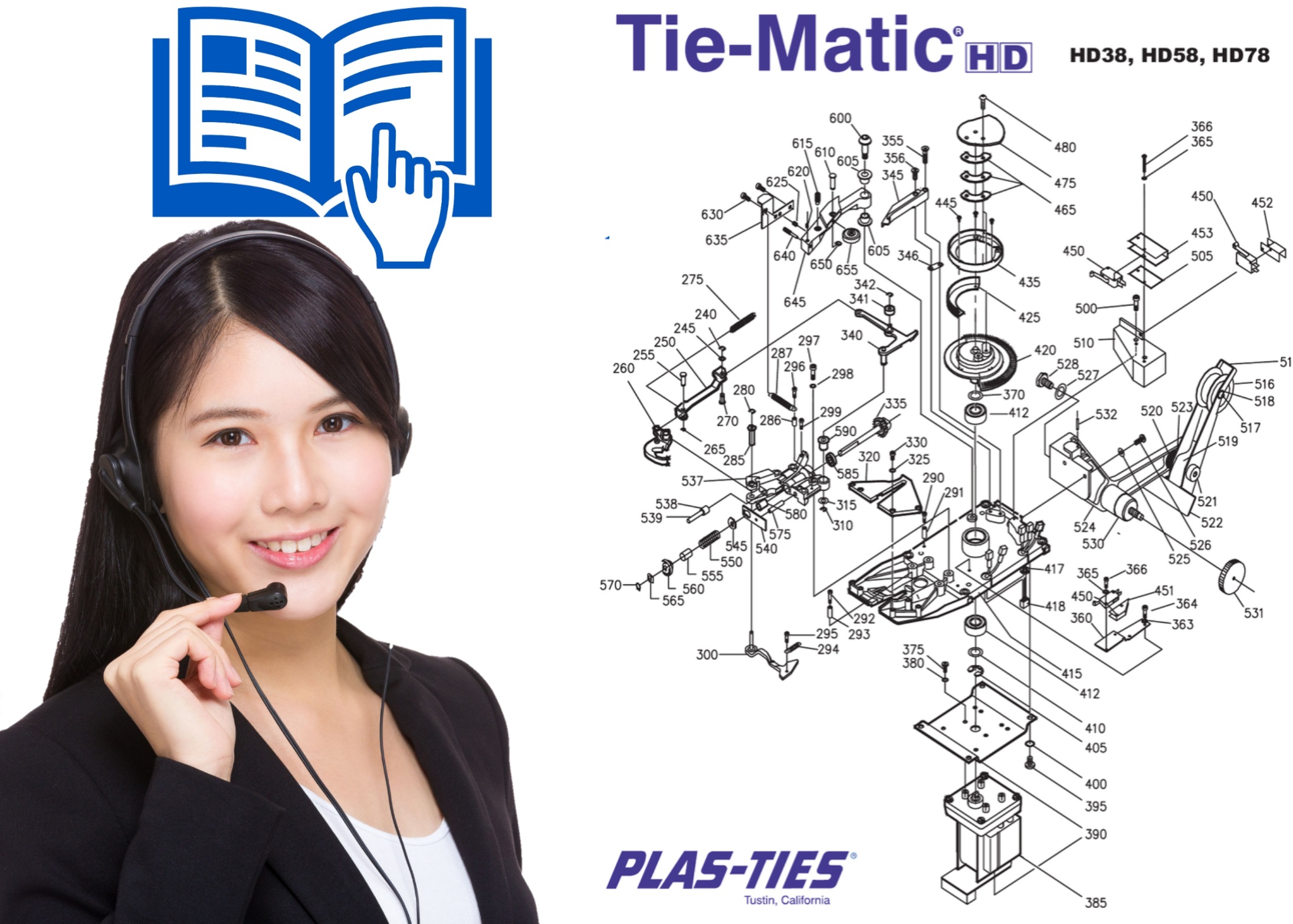

• Poster         Part Number            Description             Qty

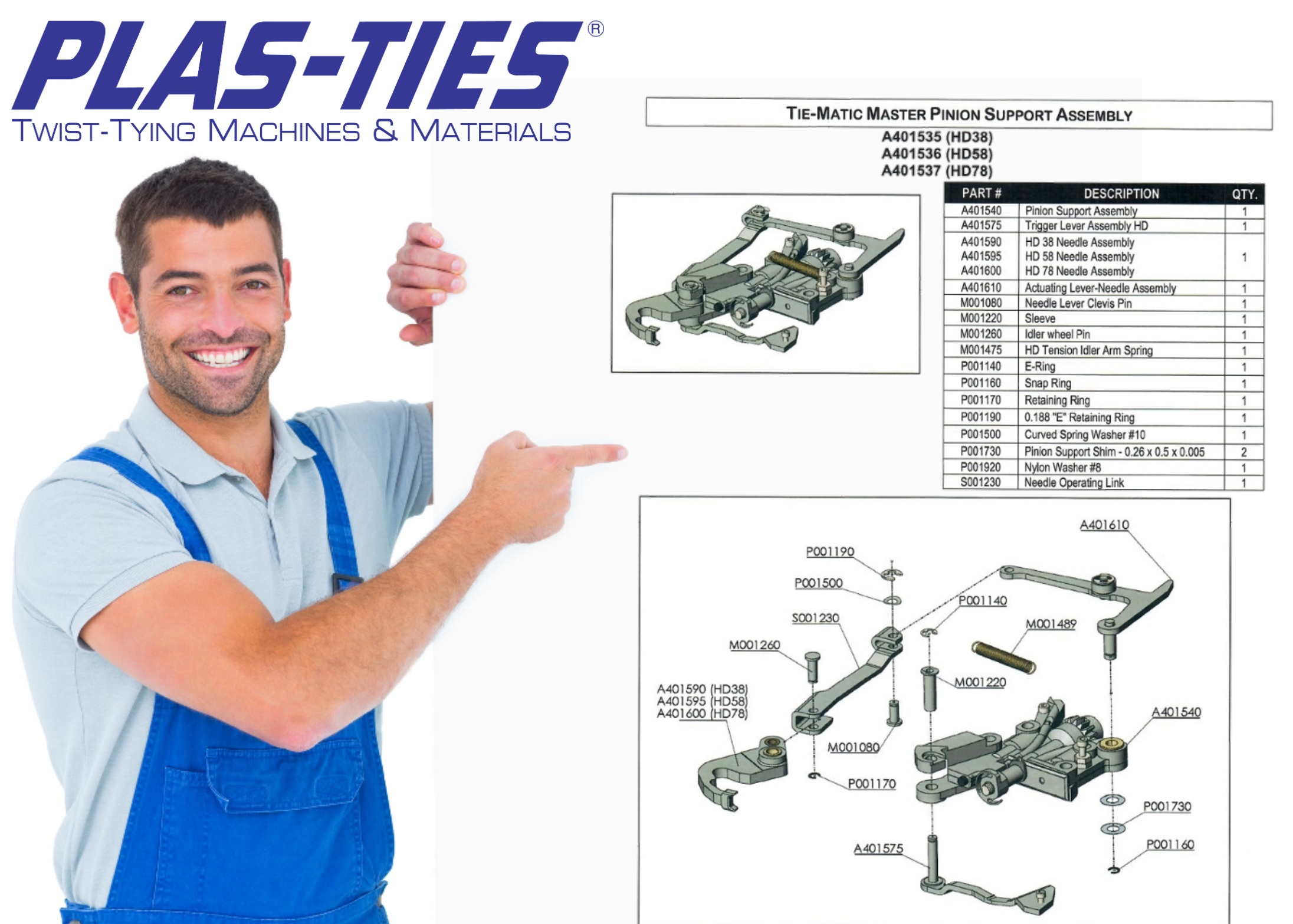

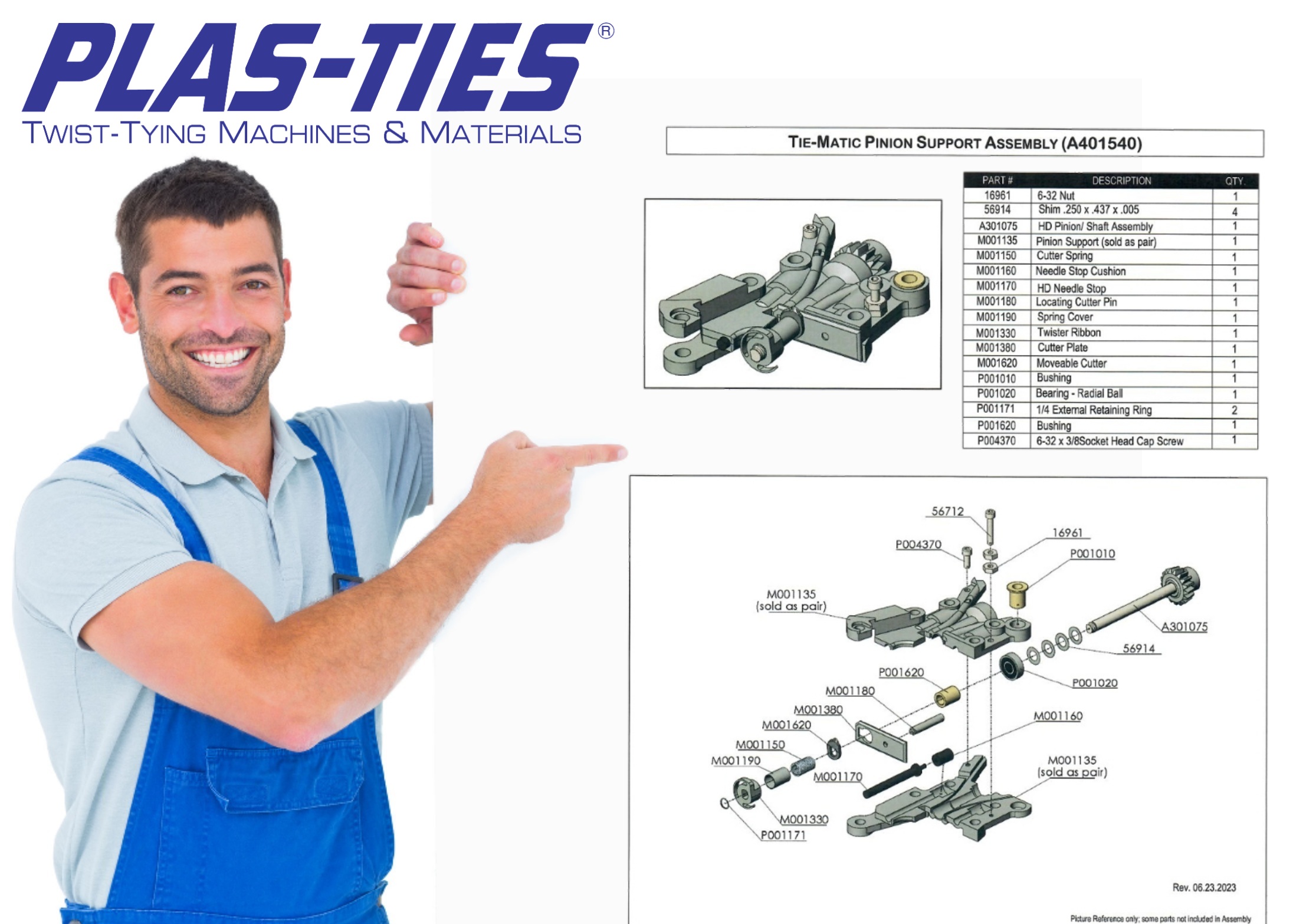

• A401535      Master Pinion Support Assembly                1

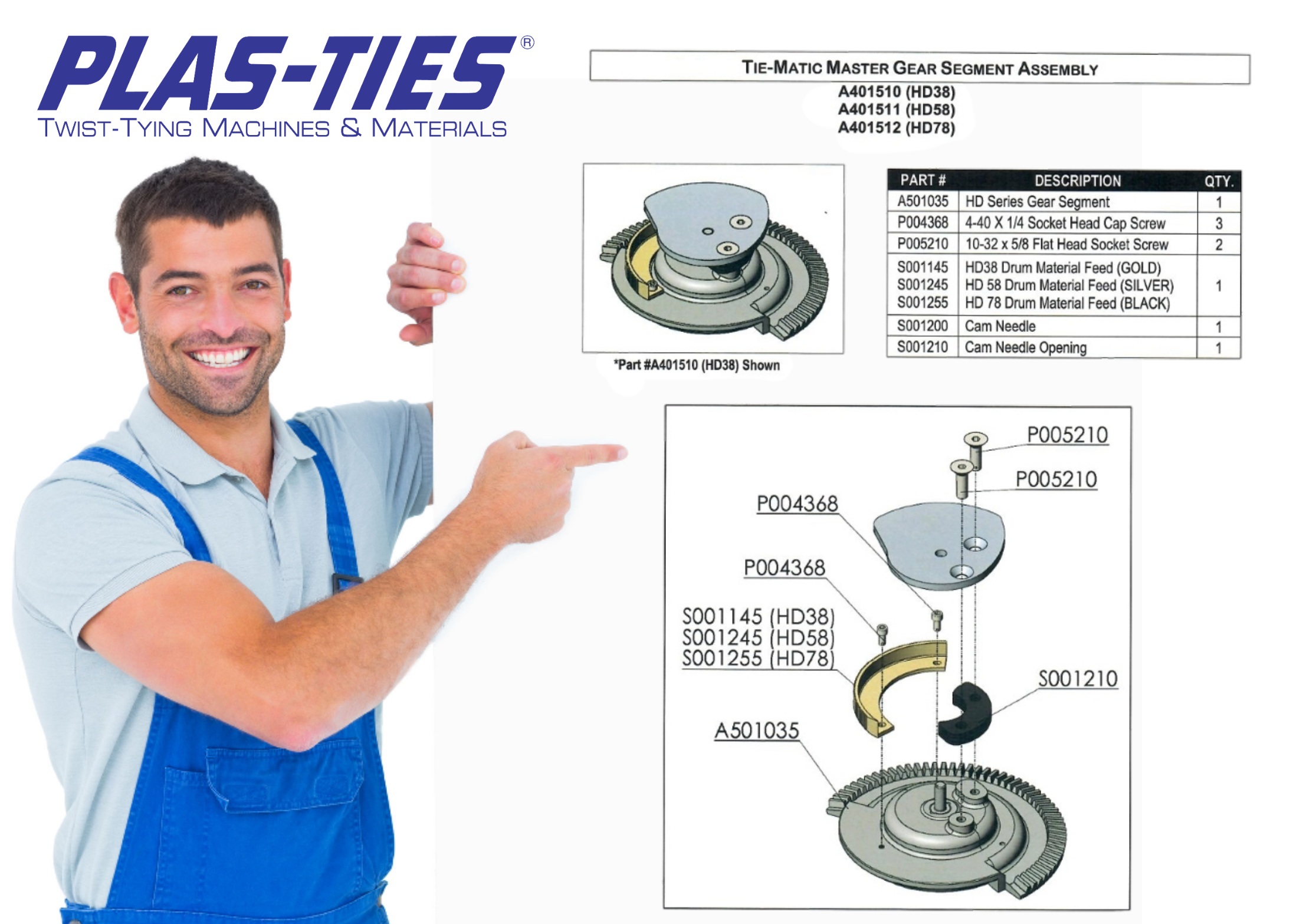

• A401510      Master Gear Segment – Assembly              1
• 505     M001200      Insulator – Spacer                            1
• 610     M001260      Insulator – Spacer                            1
• 605     M001495      Flange Sleeve Bearing                    2
• 452     M001499      Insulator, Cover Limit Switch           1
• 453     M001500      Insulator, Cam Limit Switch             1
• 451     M001501      Insulator, Trigger Limit Switch         1
• 412     P001030      Bearing, Radial Ball                         2
• 405     P001150      E-Ring, Bowed                                 1
• 650     P001160      External Snap Ring                          1
• 526     P001290  10-32 x ½ Phillips Pan Head                2
• 45       P001450  Lock washer – Internal Tooth .250        4
• 298     P001450  Lock washer – Internal Tooth .250        4
• 525     P001480  Lock washer – Internal Tooth               2
• 450     P001570  Micro Switch                                         3
• 410     P001720  Shim .005                                          1-4
• 385     P001740  Motor – Gear                                        1
• 40       P004856  ¼-20 x 1 Socket Head Cap Screw       4
• 297     P004856  ¼-20 x 1 Socket Head Cap Screw       4
• 366     P0048674-40 x 5/8 Button Head Socket Screw   6
• 365     P005353  #4 Flat Washer                                     6

Tortillaworld™ Price

• $1,500.00 USD.
• Plus shipping.
• No Tax except for Illinois.
• Allow 1 to 2 weeks for shipping.

Pictures & video are below if available

Click on pictures below for descriptions

Send comments below.

Call us Toll Free at 1-800-335-Tortilla (8678) ext. 101 or direct at 773-882-2308
